Control card

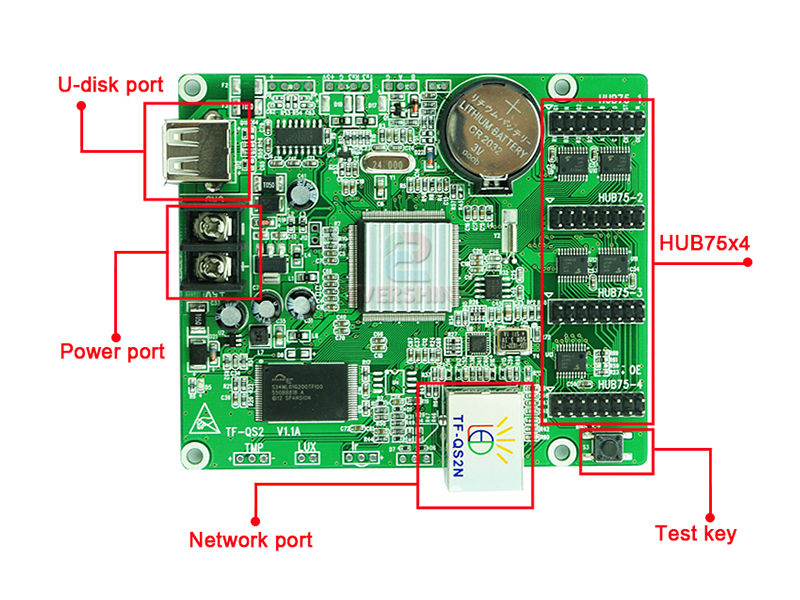

TF-QS2N

Function

Arbitrary partition,Multi partition arbitrary superposition,Program background animation,,Streamer word,Text strokes,U-disk Smart scan pixels,support cross screen. Support infrared remote function

Interface

Gigabit Ethernet + U-disk

U-disk function

support U-disk uopdate program,U-disk adjust brightness,U-disk set the screen parameter.

Control range

Full color 256x128 512x64,Width max 1024,Height max 128

HUB board

HUB75*4

Scan type

Support 1/32,1/16,1/8,1/4,1/2,static,support smart settings,U-disk smart scan.

Memory

128M

Program QTY

Maximum support 200 programs,support 16 partitions play at the same ttime,Partitions can overlap,each widow support 200 texts

Effect

45 kinds of different actions.

Colorful border

support a lot Colorful borders,support picture user-defined borders.

Content type

Video,Text,flash,picture,animation,timing,count down,count up,clock,Temperature,humidity.

Play type

program support playing by turns,by timing,by date,by week,by time quantum

Time display

Clock,time,time with seconds,support adjusting font size,can set time zone,support many different time zones play at the same time.

Communication

lanport communication.Support network automatically find10M/100M/1000Madaptive, support U disk update program

Brightness adjust

16 levels brightness.support Manual adjustment of brightness,support 6 period timing adjust brigtness,if you add a sensor, Auto adjust brightness.

Screen switch

manual screen switch,support 2 period timing screen swich.

Test Key

have test key on board,can Switch test mode.

Expand function

Temperature sensor,temperature and humidity sensor,brightness sensor.

Electrical parameters

+5V DC(4.5V~5.5V),working ≤3W

Working temperature

-30℃～70℃

Physical size

96mm×84mm   Locating hole：78mm x78mm
