High reliability

Built-in EMI filter

Low output ripple&noise

Protections：Over load/Short circuit

Approvals:CE CCC

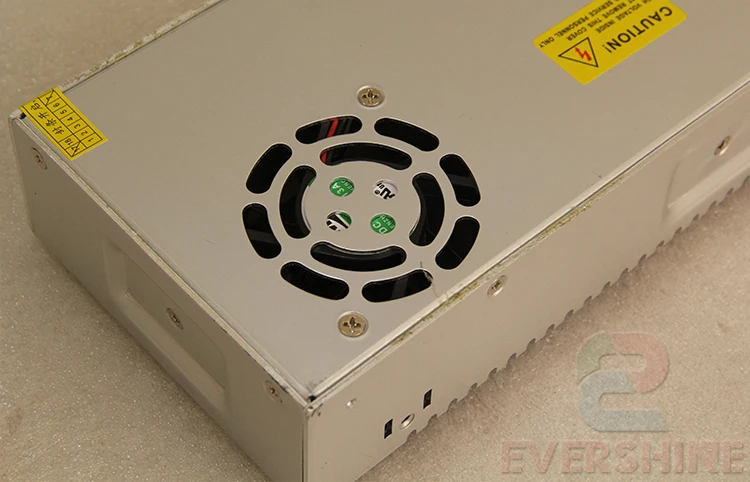

Forced air cooling by Built-in DC fan

2 years warranty

Case:812 Size:260×102×65mm

AC input voltage range--------------------------176-264VAC

Input frequency---------------------------------47-63Hz

AC inrush current--------------------------------Cold start，60A/230VAC

DC adjustment range-----------------------------±10% rated output voltage

Line regulation（full load）------------------------≤0.5%

Output over load protection-------110%-150% shut off, AC recycle to re-start

Rise，hold up time--------------------50mS，20mS at full load（typical）

Withstand voltage-------I/P-O/P,I/P-FG:1.5KVAC, O/P-FG: 0.5KVAC, 1min

Working temperature----- -10~+40℃@100%，+60℃@60% load

Storage temperature----- -20℃~+85℃，20%~95%RH(non condensing)

Safety standards------Design refer to GB4943，UL60950-1,EN60950-1

Cooling method---------------------Forced air cooling by Built-in DC fan
